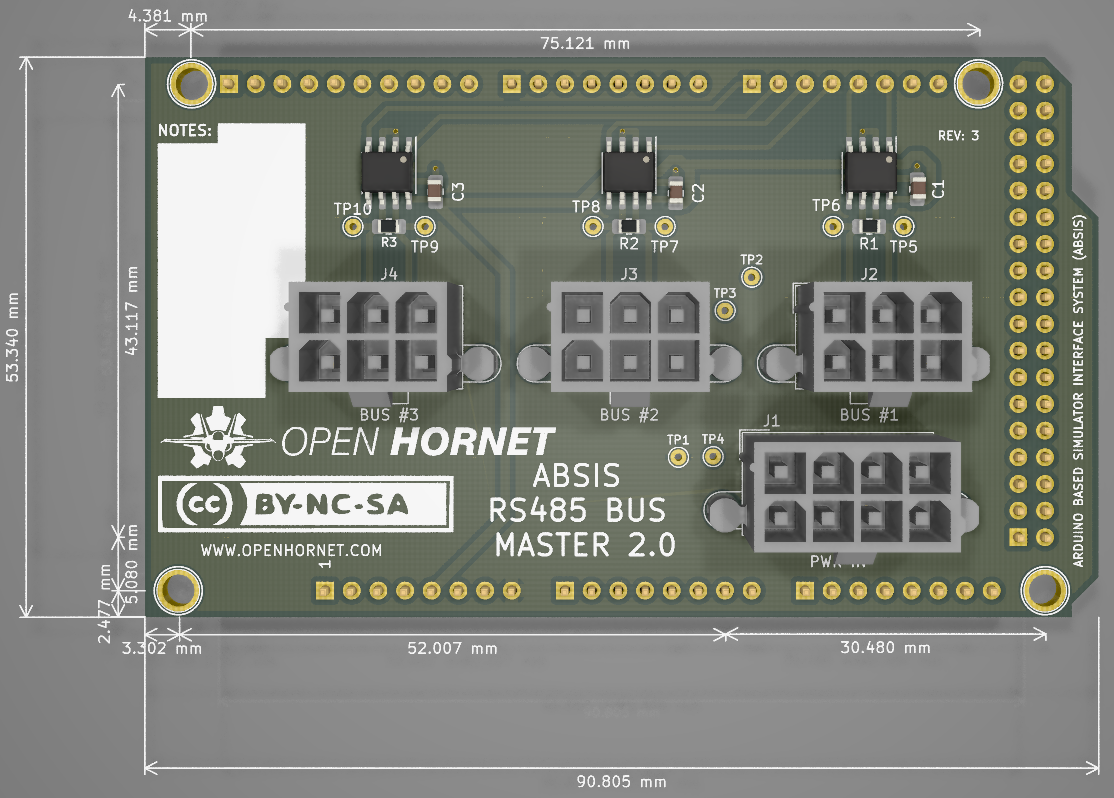

ABSIS 2.0 Bus Master
PCB with SMD Assembly
The Arduino Based Simulator Interface System (ABSIS) 2.0 is a Arduino Mega 2560 R3 Shield.
The ABSIS Bus Master utilizes 3x MAX487 ICs to act as a master device for up to three RS485 buses. Each of these combined power/data buses is referred to as the “ABSIS Bus”. It does not provide IO to the pit controls via direct interfacing with this PCB, however it utilizes slave devices to do so. It accepts power via an 8-pin MOLEX mini-fit connector. This PCB is effectively a shield for an Arduino Mega R3. This PCB interfaces to the simulator PC via USB.
Our PCBs use a Black Silk Screen
